Actions

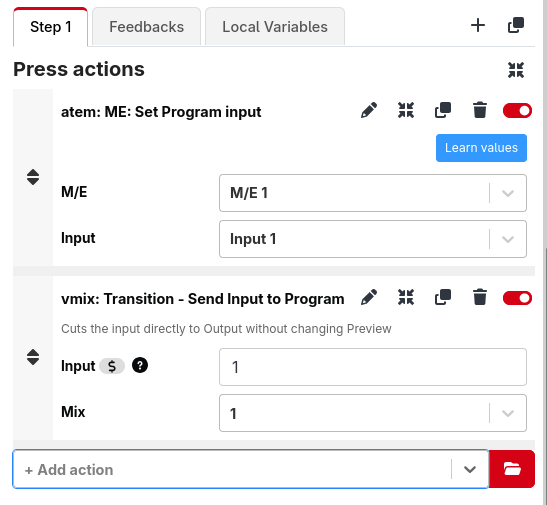

These actions define the behaviour of the button when it is pressed or depressed (or when triggered externally).

Multiple actions, even those from multiple modules, can be linked to a button. Most actions have options to let you customize how it performs.

To add an action to a button, you can either search in the box below, or click the folder button to bring up a more detailed view of all the actions available.

Companion has various built-in actions which you can use, as well as those provided by the modules.

Each button has multiple groups of actions that can be executed

The Press actions will be performed when the button is pressed or triggered.

The Release actions are performed when the button is released.

It is also possible to add some timed groups, to allow for long presses. You can add one with the Add duration group button.
Once added you can edit the time of that group and whether it executed upon release or while being held.

When there is a duration group added, the Release actions becomes Short release actions, and will only be executed when released before the first duration group time is reached.

Starting in Companion 3.5, the delays have been replaced with a new internal: Wait Action. This will delay all actions that follow it in the list.
Actions at the root level get executed in the Concurrent mode described below.

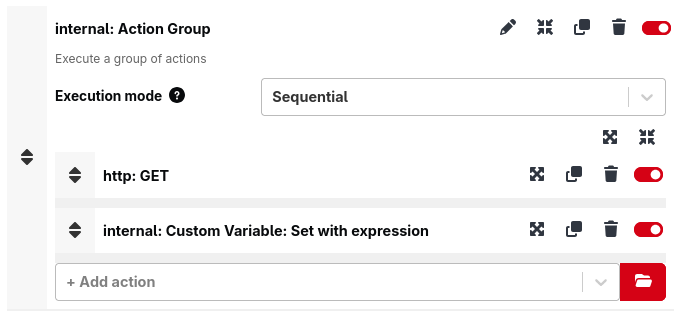

To allow for more complex setups and customisability, there is also a new internal: Action Group action.
This action acts as a group that can contain other actions, including other Action Group

These groups have a few modes of execution

• Inherit follows the mode of the parent group
• Concurrent this is equivalent to previous releases of Companion, with Absolute Delays enabled.
  In this mode, the actions get executed in parallel, broken up between any internal: Wait actions.
• Sequential In this mode, the actions get executed in order, waiting for the previous one to complete execution before starting the next. Not every module implementats actions in a way that lets Companion know that execution has completed, but many do.
  This allows for programming complex sequences that must be done in a particular order without relying on small delays
