Contour Shuttle

Bitfocus Companion supports using the Contour ShuttleXpress and ShuttlePro v1 and v2, since Companion v3.1.0. (Note: support for very old versions of ShuttlePro v1 was added in v4.1.3)

Enable USB Detection​

You must enable scanning for Contour Shuttle products in Companion's Settings > Surfaces section and rescan for USB devices.

Setting button/jog wheel/shuttle ring actions​

The button layout closely matches the device, with the following addition. For the shuttle ring you have the choice of two different buttons:

  • row2/col2: a rotate action will be sent once for each "stop" on the ring (+/- 7, including 0),
  • row2/col3: rotate actions will be sent with increasing frequency in proportion to how far the ring has been turned away from the neutral position. Use a custom variable (see next section) if you need to determine direction and magnitude. (No action is sent when the shuttle returns to 0)
note

In either case, rotate-left is emitted when the jog is to the left of zero (the neutral position) and rotate-right is sent when the jog is to the right of zero, regardless of the physical rotation direction.

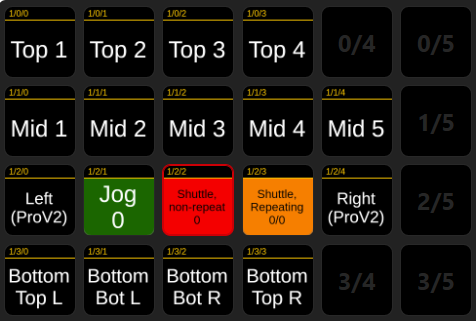

Contour Shuttle template

Download a Contour Shuttle template here. (The template includes the variables described in the next section.)

Setting Variables​

The contour shuttle can set the values of two custom variables of your choosing to indicate shuttle position and jog motion. To enable this feature you must first define custom variables. For example, got to the Custom Variables tab and add the following two variables: $(custom:contourShuttleJog) and $(custom:contourShuttleRing)...

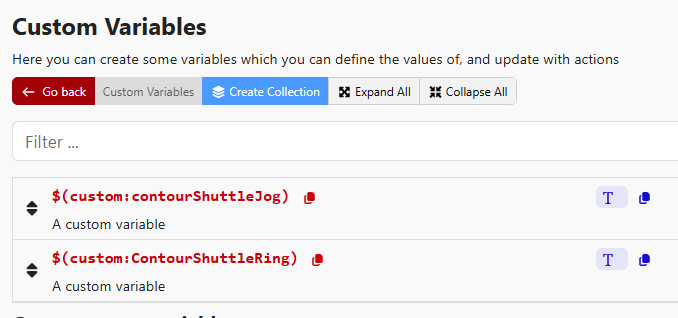

Define Contour Shuttle Variables

Once the variables have been defined, go to the Configured Surfaces page and select the variables in the right-hand Settings panel:

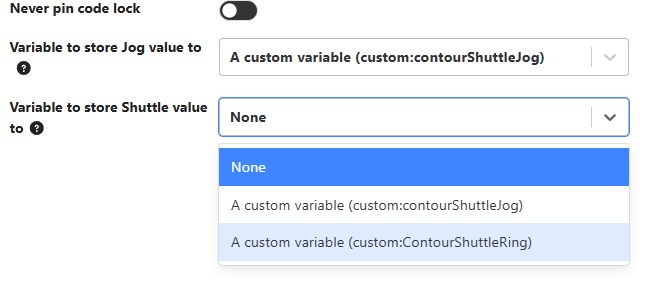

Set Contour Shuttle Variables

Now the variables will be set by the Contour Shuttle. Using the example names defined above:

  • $(custom:contourShuttleJog) (+1/-1): indicates the rotational direction of the jog wheel for 20 ms after each click-stop.
  • $(custom:contourShuttleRing) (-7 to +7): indicates the current shuttle position
